THE SPERRY BALL TURRET
This page last updated December 17th, 2007
Click on the image for a larger picture

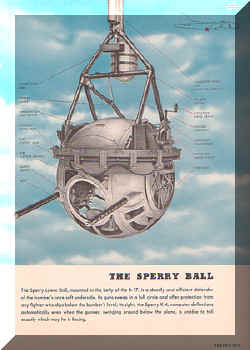

The
Sperry lower ball turret was
used in
the
Boeing
B-17
Flying
fortress
and
the
Consolidated
B-24
Liberator. The ball turret was mounted underneath the aircraft and was
used to defend the bomber against aircraft attacking from below.
The
turret mounted two Browning 50 caliber machine guns that would fire
750 to 850 bullets in a minute , that’s about 14 bullets a
second. Statistically, the ball turret was one of the safest crew
positions during WWII as ball turret gunners had the lowest loss rate.
To
get in the turret the gunner would manually crank the guns straight down after
take off. He could then open the hatch and would climb in. Once inside he could
turn on the turrets electrical and hydraulic power. The gunner would lie inside
the turret in a fetal position and would sight between his legs through the
circular glass. The turret was powered by an electric motor that drove two
Vickers hydraulic units. One for azimuth (sideways) and one for elevation (up
and down). The gunner had two handles to control the turret with. On top of
these handles were the buttons for firing the guns.
Since
the B-24 had very low ground clearance, a retracting mechanism was used to raise
and lower the turret
for take off and landing.
THE TURRET ON DISPLAY IS A NEW OLD STOCK SPERRY BALL TURRET THAT WAS STILL MOUNTED ON ITS ORIGINAL SHIPPING SKID AND HAS BEEN IN STORAGE SINCE IT WAS MANUFACTURED 60 YEARS AGO.
NOTE THE EARLY STYLE GLASS CONFIGURATION. MANY OF THESE PANES WERE ELIMINATED ON THE LATER BALL TURRETS. ALL OF THE PLEXIGLAS AND OPTICAL GLASS IS ORIGINAL FROM THE FACTORY.
HERE YOU CAN SEE THROUGH THE ROUND OPTICAL GLASS THAT THE GUNNER WOULD SIGHT THROUGH.
Click on the image for a larger picture
ONE OF THE MOST UNIQUE FEATURES OF THIS TURRET IS THAT ALL OF THE ORIGINAL STENCILING, DECALS AND PLACARDS ARE FULLY INTACT.
HERE ARE THE INTERNALLY MOUNTED STAINLESS STEEL AMMO CANS WITH ALL OF THE FACTORY INSPECTION STAMPS AND STENCILS STILL INTACT. THE STENCILED BULLETS WERE TO REMIND THE ARMORER WHICH WAY TO LOAD THE AMMUNITION.
ONE WONDERS HOW THIS DECAL CAME ABOUT. PROBABLY THROUGH A LESSON LEARNED THE HARD WAY.
THIS IS THE ENTRY HATCH. WHEN THE GUNS POINTED STRAIGHT DOWN THE GUNNER COULD GET IN THE TURRET FROM INSIDE THE AIRCRAFT. WHEN THE GUNS WERE POSITIONED HORIZONTALLY THE GUNNER COULD OPEN THE HATCH TO THE OUTSIDE OF THE AIRCRAFT. THEORETICALLY THE GUNNER COULD BAIL OUT OF THE TURRET IN FLIGHT. TYPICALLY THE GUNNER WOULD STOW HIS PARACHUTE INSIDE THE AIRCRAFT SO AS TO GIVE HIM MORE ROOM IN THE CRAMPED TURRET. IF THE GUNNER HAD TO BAIL OUT HE WOULD TURN THE GUNS DOWN AND CRAWL THROUGH THE FUSELAGE TO BAIL OUT FROM THE REAR HATCH.
EVEN THE QUALITY ASSURANCE DECALS ARE STILL PRESENT ON THE TURRET. THIS TURRET IS A STUDY IN WWII MANUFACTURING AND PROCESSES.
THE INSIDE OF THE TURRET IS ALSO IN EXCELLENT CONDITION. ONLY THE PADDING ON THE ARMOR PLATE SEAT SHOWS ITS AGE. NOTE THE SPERRY COMPUTING K-4 GUN SIGHT IN THE UPPER LEFT CORNER. THIS WAS A HIGHLY ADVANCED COMPUTER FOR 1942 WHICH HELPED TO REDUCE THE WORK LOAD OF THE GUNNER BY COMPUTING LEAD AND ELEVATION SOLUTIONS AUTOMATICALLY. ANOTHER INTERESTING PLACARD IS SCREEN PRINTED ON THE GUNNERS SEAT. USE MODIFIED B-8 PARACHUTE. IF YOU HAVE ANY REFERENCE TO THIS MODIFICATION PLEASE LET ME KNOW.
Click on the image for a larger picture
Jimmy Ricketts has been at it again. Here is the finished ball turret stand that Jim built. The stand was designed after an original WWII turret stand that I saw in storage at the National Air and Space Museum. It was made using the same tubing size and gusset patterns but we only put a ladder in on one side instead of both sides like the original. The stand is sitting on top of a WWII bomb service trailer made by Saginaw Stamping and Tool. This stand has made the ball turret fully functional and it was taken on its maiden flight by the famous 8th Air Force ball turret gunner Wilbur Richardson. At our Gunnery Symposium he demonstrated the ball turret to a big crowd and then answered questions from atop the turret. It was a great display which was made possible by Jimmy Ricketts. Thanks Jimmy for all of your outstanding work!
TO ALL OF OUR COUNTRY'S VETERANS, WE HERE AT VINTAGE AIRCRAFT WOULD LIKE TO SAY:
THANK YOU FOR WHAT YOU DID FOR OUR COUNTRY!
